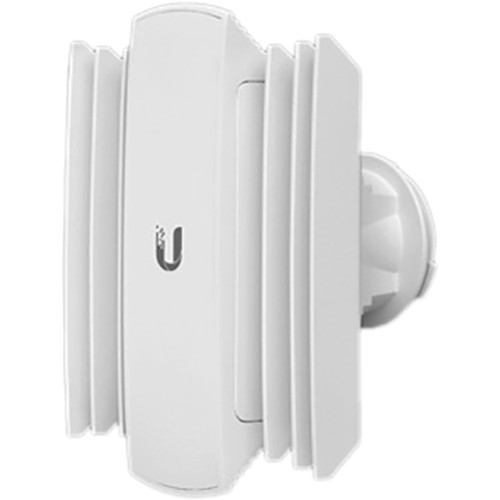

Ubiquiti HORN-5-90 network antenna Horn antenna 13 dBi

Quick Code: Q469296 MPN: HORN-5-90

You need to be logged in to see Prices

Log In For Prices
Dont have an account? Contact Us

Overview


5 GHz Beamwidth Horn Antenna
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co-location performance without sacrificing gain.

Modular Design
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.

Asymmetrical horn antennas
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.




Specification

Technical Description: Ubiquiti HORN-5-90 network antenna Horn antenna 13 dBi
Features
Isolation:
17 dB
Survival wind speed:
200 km/h
Wind load:
46
Product colour:
White
Voltage Standing Wave Ratio (VSWR):
2:1
Polarization:
Dual polarization
Antenna type:Type of antenna, also known an aerial, e.g. external, internal.
Horn antenna

Logistics data
Harmonized System (HS) code:
85177100

Packaging content
Quantity per pack:The amount in each pack.
1 pc(s)

Performance
Horizontal beam width:
90°
Vertical beam width:
90°
Frequency band:A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
5.15 - 5.85 GHz
Antenna gain level (max):Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
13 dBi

Weight & dimensions
Weight:Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
920 g
Height:The measurement of the product from head to foot or from base to top.
186.8 mm
Depth:The distance from the front to the back of something.
113.2 mm
Width:The measurement or extent of something from side to side.
152.1 mm

Product details

HORN-5-90 Ubiquiti

Ubiquiti HORN-5-90 network antenna Horn antenna 13 dBi

£73.00 and In stock

SKU: HORN-5-90
