StarTech.com 1m CAT6a Ethernet Cable - White - Low Smoke Zero Halogen (LSZH) - 10GbE 500MHz 100W PoE++ Snagless RJ-45 w/Strain Reliefs S/FTP Network Patch Cord

Quick Code: Q705379 MPN: NLWH-1M-CAT6A-PATCH

You need to be logged in to see Prices

Log In For Prices
Dont have an account? Contact Us

Overview


LSZH | 10GbE | 100W PoE++ | Snagless RJ-45

Cat6a Ethernet Low-Smoke Zero-Halogen (LSZH) Shielded cables support Multi-Gigabit/Multi-speed 1/2.5/5Gbps/10Gbp connections. It offers robust protection against electromagnetic interference (EMI/RFI) and noise, ensuring a fast, safe, and reliable network.

Low-Smoke Zero-Halogen (LSZH) CAT6A Ethernet Cable

LSZH Cat6a Network Cables are more eco-friendly than PVC cables. In the event of a fire, LSZH cables produce low levels of corrosive fumes and smoke. Low levels of acrid combustion pollutants promote increased visibility, resulting in safe and quick building evacuations by staff and first responders.

100W Power over Ethernet (PoE++)

This high performance Ethernet cable complies with the IEEE 802.3bt-2018 standard. It supports 100W PoE++, providing ample power to Type 4 PoE devices.

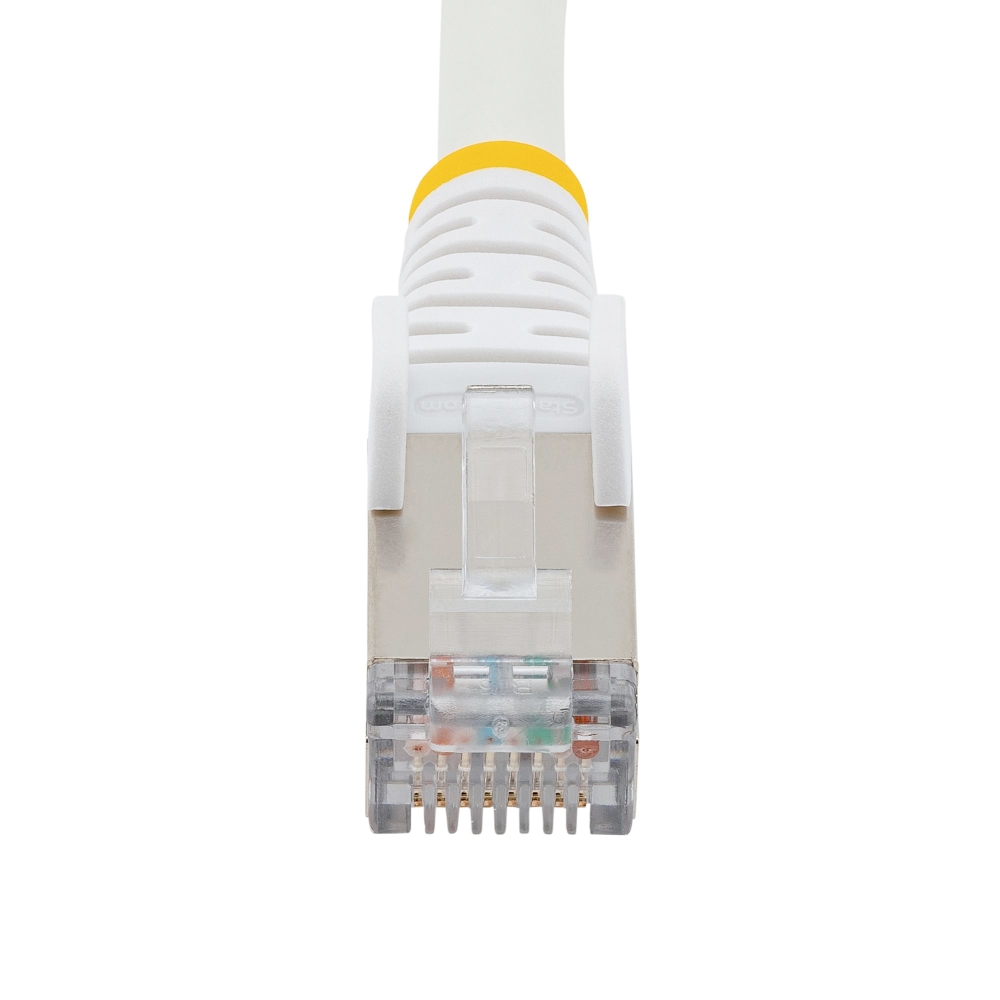

RJ45 Connectors with Snagless Clips

The Cat6a cable features snag-less connectors. Snagless molded boots protect the tab/latch on each RJ45 connector. The boots prevent the cable from snagging during cable routing and/or installation into network devices.

The molded boots feature integrated strain reliefs that prevent sharp connector/cable angles at the termination points.

This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage




At-a-glance


  • 100W POWER OVER ETHERNET (PoE): Supports PoE devices up to 100W PoE++ - Complies with IEEE 802.3bt for Type 4 PoE Devices

  • CAT6A ETHERNET CABLE: High-performance Ethernet Cable for error-free 1/2.5/5/10Gbps multi-gigabit/multi-speed connections; Low Near-End Crosstalk (NEXT) and Return Loss (RL); Tested to meet ANSI/TIA-568.2-D standards; Fluke Tested and ETL Verified

  • LOW SMOKE ZERO HALOGEN (LSZH): PVC Free cable jacket produces less dense and corrosive smoke than PVC - Braided construction resists damage from bending

  • PURE COPPER WIRING: 27 AWG 100% stranded copper wire delivers error-free data and stable PoE power, unlike the lower quality copper-clad aluminium versions of other brands, Gold-plated connector pins improve signal integrity

  • SPECS: Cat 6A Network Cable - 1m - White - 10Gbps - 500 MHz - 4 Pair S/FTP - Snagless RJ-45 with Strain Reliefs - EVA, Al(OH)3 - LSZH - 27 AWG - Copper - ETL Verified - ANSI/TIA-568.2-D - Supports Cat6 and earlier standards




Reasons to buy

  • 100W POWER OVER ETHERNET (PoE): Supports PoE devices up to 100W PoE++ - Complies with IEEE 802.3bt for Type 4 PoE Devices
  • CAT6A ETHERNET CABLE: High-performance Ethernet Cable for error-free 1/2.5/5/10Gbps multi-gigabit/multi-speed connections; Low Near-End Crosstalk (NEXT) and Return Loss (RL); Tested to meet ANSI/TIA-568.2-D standards; Fluke Tested and ETL Verified
  • LOW SMOKE ZERO HALOGEN (LSZH): PVC Free cable jacket produces less dense and corrosive smoke than PVC - Braided construction resists damage from bending
  • PURE COPPER WIRING: 27 AWG 100% stranded copper wire delivers error-free data and stable PoE power, unlike the lower quality copper-clad aluminium versions of other brands, Gold-plated connector pins improve signal integrity
  • SPECS: Cat 6A Network Cable - 1m - White - 10Gbps - 500 MHz - 4 Pair S/FTP - Snagless RJ-45 with Strain Reliefs - EVA, Al(OH)3 - LSZH - 27 AWG - Copper - ETL Verified - ANSI/TIA-568.2-D - Supports Cat6 and earlier standards

Specification

Technical Description: StarTech.com 1m CAT6a Ethernet Cable - White - Low Smoke Zero Halogen (LSZH) - 10GbE 500MHz 100W PoE++ Snagless RJ-45 w/Strain Reliefs S/FTP Network Patch Cord
Certificates
Compliance certificates:
CE, RoHS

Certification
Compliance certificates:
CE, RoHS

Features
Plug and Play:Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Yes
Snagless cable boot:
Yes
Total Power over Ethernet (PoE) budget:
100 W
Power over Ethernet (PoE) type supported:
PoE++ (4PPoE)
Power over Ethernet (PoE):The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Yes
Frequency:
500 MHz
Data transfer rate:Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.
10000 Mbit/s
AWG wire size:
27
Cabling technology:Type of cable technology performance.
10GBase-T
Conductor material:
Copper
Conductor type:
Stranded
Cable shape:
Round
Jacket material:
Low smoke zero halogen (LSZH)
Connector shielding:
Yes
Connector 1 form factor:
Straight
Connector 1 gender:
Male
Connector 2 form factor:
Straight
Connector 2 gender:
Male
Connector 2:This is the second connector in the device.
RJ-45
Connector 1:This is the first connector in the device.
RJ-45
Product colour:
White
Cable shielding:The protective layer for the cable, typically made of plastic.
S/FTP (S-STP)
Cable standard:The category of the cable, which is determined by performance characteristics and test requirements.
Cat6a
Cable length:How long the cable is.
1 m

General
Type:Characteristics of the device.
Networking Cables

Logistics data
Products per master (outer) case:
120 pc(s)
Master (outer) case height:
290 mm
Master (outer) case length:
380 mm
Master (outer) case width:
430 mm

Packaging content
Quantity per pack:The amount in each pack.
1 pc(s)

Packaging data
Package weight:Weight of the packaged product.
50.8 g
Package height:The distance from the top to the bottom of the packaging.
10 mm
Package depth:The distance from the front to the back of the packaging.
190 mm
Package width:The distance from one side of the packaging to the other.
220 mm

Technical details
Sustainability compliance:
Yes

Weight & dimensions
Weight:Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
42.1 g

Product details

NLWH-1M-CAT6A-PATCH StarTech.com

StarTech.com 1m CAT6a Ethernet Cable - White - Low Smoke Zero Halogen (LSZH) - 10GbE 500MHz 100W PoE++ Snagless RJ-45 w/Strain Reliefs S/FTP Network Patch Cord

£13.00 and In stock

SKU: NLWH-1M-CAT6A-PATCH
